Kubernetes monitoring with Prometheus and Grafana

kubernetes
jetstream
jupyterhub
Published

October 25, 2024

In a production Kubernetes deployment it is necessary to make it easier to monitor the status of the cluster effectively. Kubernetes provides Prometheus to gather data from the different components of Kubernetes and Grafana to access those data and provide real-time plotting and inspection capability. Moreover, they both provide systems to send alerts in case some conditions on the state of the cluster are met, i.e. using more than 90% of RAM or CPU.

The only downside is that the pods that handle monitoring consume some resource themselves, so this could be significant for small clusters below 5 nodes or so, but shouldn’t be a problem for typical larger production deployments.

Both Prometheus and Grafana can be installed separately with Helm recipes or using the Prometheus operator Helm recipe, however those deployments do not have any preconfigured dashboards, it is easier to get started thanks to the kube-prometheus project, which not only installs Prometheus and Grafana, but also preconfigures about 10 different Grafana dashboards to explore in depth the status of a Kubernetes cluster.

The main issue is that customizing it is really complicated, it requires modifying jsonnet templates and recompiling them with a jsonnet builder which requires go, however I don’t foresee the need to do that for most users.

First check the Kubernetes compatibility matrix to check what version of Kube-Prometheus we should use, for the Jetstream 2 deployment via Kubespray as of October 2024 we deploy Kubernetes 1.25, therefore we need 0.12.

Unfortunately it is not based on Helm, so you need to first checkout the repository, I have a fork with a minor modification to export the JupyterHub-related pod labels:

git clone --single-branch --branch release-0.12-jupyterhub-labels https://github.com/zonca/kube-prometheus

This is release-0.12 branch with minor modifications focused on exporting the JupyterHub-related pod labels

and then follow the instructions in the documentation, copied here for convenience:

kubectl apply --server-side -f manifests/setup
kubectl wait \
    --for condition=Established \
    --all CustomResourceDefinition \
    --namespace=monitoring
kubectl apply -f manifests/

This creates several pods in the monitoring namespace:

kubectl get pods -n monitoring
NAME                                   READY   STATUS    RESTARTS      AGE
alertmanager-main-0                    2/2     Running   1 (20h ago)   20h
alertmanager-main-1                    2/2     Running   1 (20h ago)   20h
alertmanager-main-2                    2/2     Running   1 (20h ago)   20h
blackbox-exporter-6fd586b445-ptmgk     3/3     Running   0             20h
grafana-6849bbf859-c85s7               1/1     Running   0             20h
kube-state-metrics-66659c89c-zfwg2     3/3     Running   0             20h
node-exporter-28gfj                    2/2     Running   0             20h
node-exporter-kh4gf                    2/2     Running   0             20h
prometheus-adapter-757f9b4cf9-vpq24    1/1     Running   0             20h
prometheus-adapter-757f9b4cf9-ww9sd    1/1     Running   0             20h
prometheus-k8s-0                       2/2     Running   0             20h
prometheus-k8s-1                       2/2     Running   0             20h
prometheus-operator-776c6c6b87-dnlcx   2/2     Running   0             20h

Then you can setup forwarding on your laptop to export grafana locally:

kubectl --namespace monitoring port-forward svc/grafana 3000

Access localhost:3000 with your browser and you should be able to navigate through all the statistics of your cluster, see for example this screenshot. The credentials are user admin and password admin.

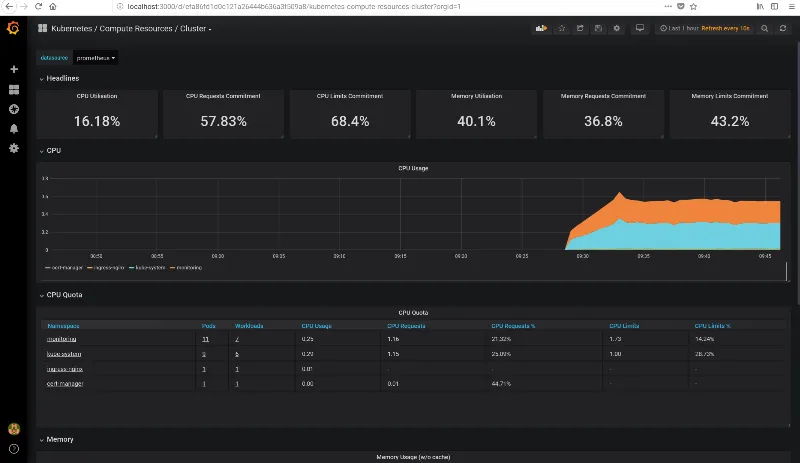

Screenshot of the Grafana UI

From the “Home” page, you can access all the preconfigured dashboards by clicking on the top “Home” button, it will show a searchable list of all available dashboards.

Access the UI from a different machine

In case you are running the configuration on a remote server and you would like to access the Grafana UI (or any other service) from your laptop, you can install kubectl also on your laptop, then copy the .kube/config to the laptop with:

 scp -r KUBECTLMACHINE:~/.kube/config ~/.kube

and run:

 ssh ubuntu@$IP -f -L 6443:localhost:6443 sleep 3h &

from the laptop and then run the port-forward command locally on the laptop.

Monitor JupyterHub with the default dashboards

Once we have deployed JupyterHub with Helm, we can pull up the “namespace” monitor and select the jhub namespace to visualize resource usage but also usage requests and limits of all pods created by JupyterHub and its users. See a screenshot below.

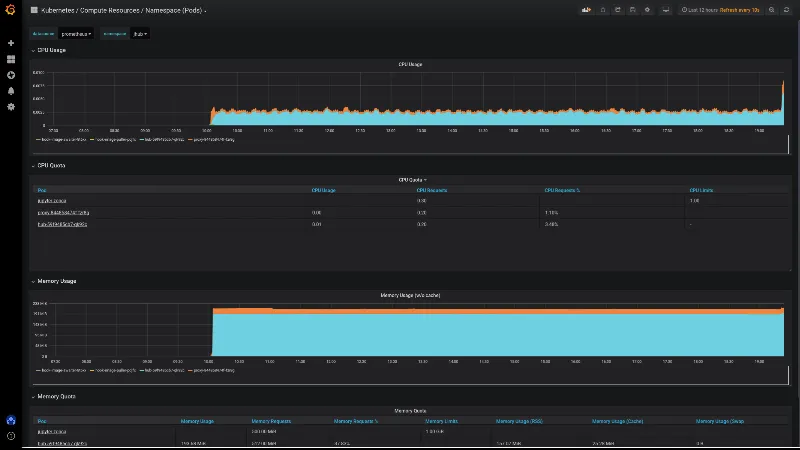

Screenshot of the Grafana namespace UI

Monitor JupyterHub with custom dashboards

The fork of Kube-Prometheus exports JupyterHub-related labels, so we can create custom dashboards to monitor JupyterHub more in depth.

For example we can track how many Notebook sessions are used in JupyterHub.

It is best to create a new dashboard, becase we cannot mix panels generated programmatically by Kube-Prometheus with Panels created by the Grafana UI itself.

We can create a new dashboard and add a new Timeseries panel with the following query:

sum(kube_pod_labels{label_component="singleuser-server"})

This will show the number of singleuser servers running in the jhub namespace.

The problem is that by default Prometheus retains metrics only for 10 days by default, we can modify this in manifests/prometheus-prometheus.yaml.

In the branch release-0.12-jupyterhub-labels I have already modified the Prometheus resource to retain metrics for 365 days, you can modify the retention field to change this. Moreover, the same manifest also creates a 50 GB Persistent Volume Claim for each of the Prometheus pods, you can modify the storage field to change this.

Setup alerts

Warning: the “Setup alerts” section needs to be updated

Grafana supports email alerts, but it needs a SMTP server, and it is not easy to setup and to avoid being filtered as spam. The easiest way is to setup an alert to Slack, and optionally be notified via email of Slack messages.

Follow the instructions for slack on the Grafana documentation

  • Create a Slack app, name it e.g. Grafana
  • Add feature “Incoming webhook”
  • Create a incoming webhook in the workspace and channel your prefer on Slack
  • In the Grafana Alerting menu, set the webhook incoming url, the channel name

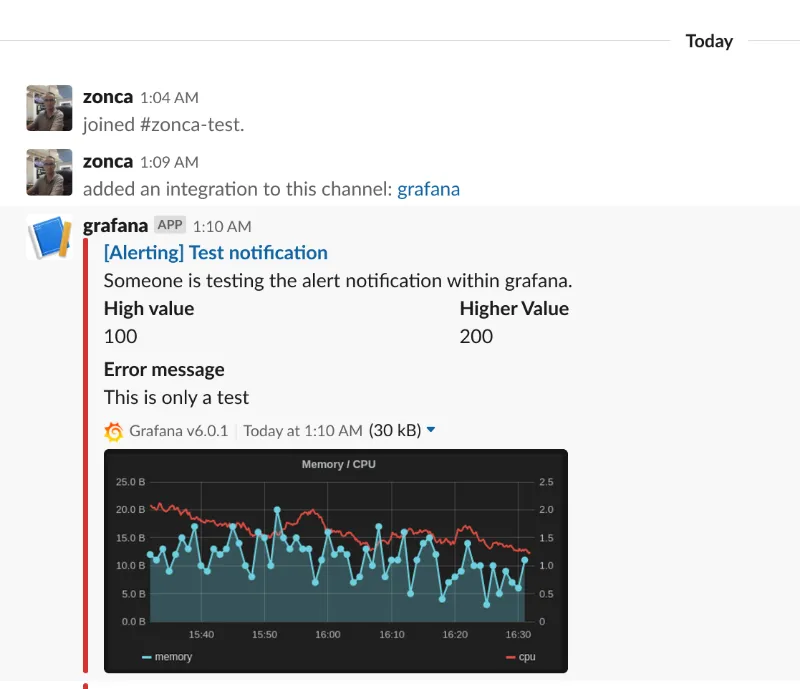

Screenshot of the Grafana slack notification

Configure a domain

We need to serve both JupyterHub and Grafana from the same Jetstream instance, so we need 2 domains, Jetstream automatically creates a domain based on the name of the instance and the allocation, typically:

kubejetstream-1.xxx000000.projects.jetstream-cloud.org

where xxx000000 is the allocation code.

We can create a new DNS record with the Openstack-cli, the best is to use a CNAME, so that if we redeploy and the VM changes address, the record would still be valid, the command is (the . at the end of the records is intentional):

openstack recordset create xxx000000.projects.jetstream-cloud.org. grafana --type CNAME --record 'kubejetstream-1.xxx000000.projects.jetstream-cloud.org.'

Now we should be able to access https://grafana.xxx000000.projects.jetstream-cloud.org and get a nice 404 error from our ingress.

Any other domain would work, as long as it points to the IP of the master node of Kubernetes. The proper way of deploying this would be through a Load Balancer, but I haven’t had much success in making that work on Jetstream 2 in the past.

Configure ingress

It is also possible to expose Grafana to the web via an Ingress, see an example ingress. It is important that it is in the monitoring namespace.

The configuration also supports HTTPS, for that to work you also need to create an Issuer in the namespace monitoring (also rename the secret key), for more details see the tutorial on deploying letsencrypt
